About Acorn Controls
Acorn Controls knows water pressure-reducing, balancing, and tempering valves. They know how to manufacture, test, and use valves and their importance in managing a potable water system.
For nearly 50 years, Acorn Controls has made commercial buildings safer for their occupants with dependable valves. Their passion is to build reliable products that meet or exceed standard listings and approvals. They manufacture the well-known BASyC®, TempFlow®, Alpha®, Omega® product lines, as well as a full line of Acorn ConTrols® water pressure reducing valves (PRVs).
Featured Product:

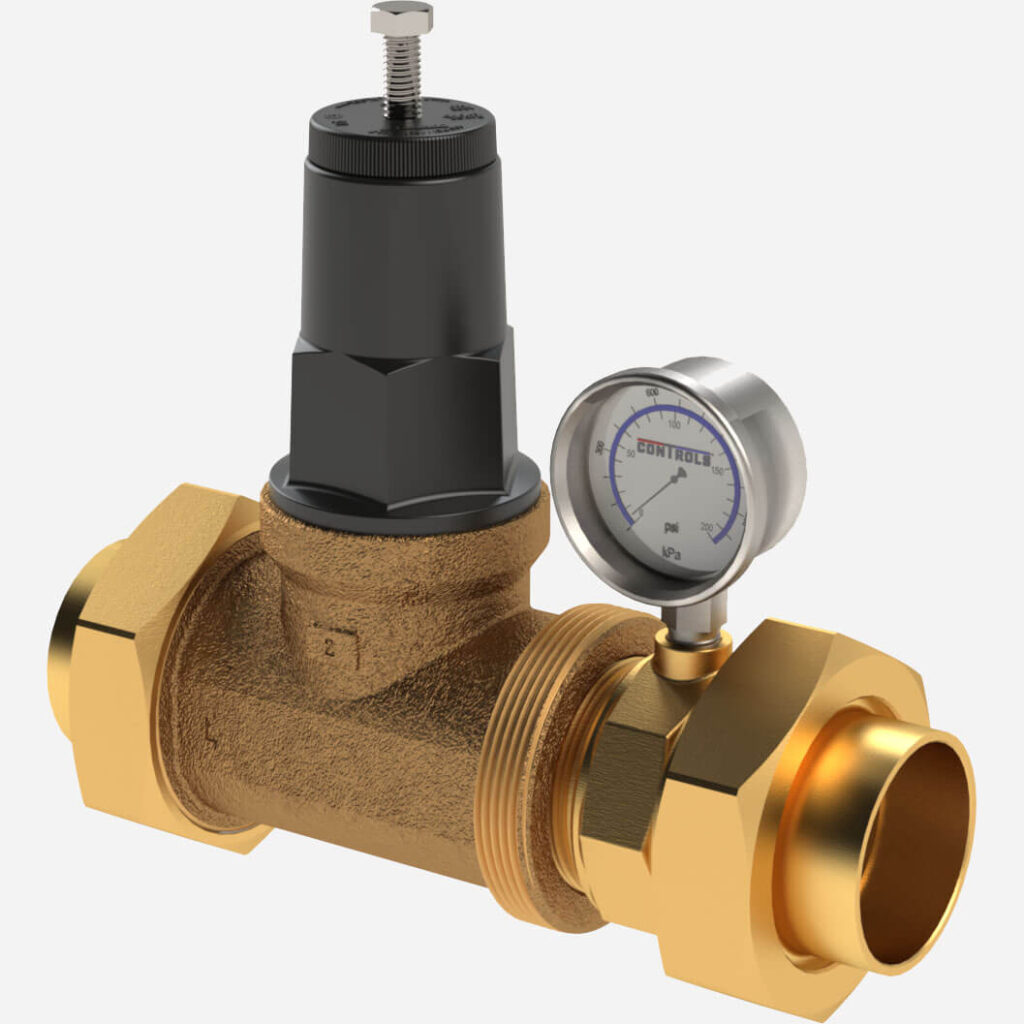

Acorn Control® Pressure Reducing Valve
RV03 Series Water Pressure Reducing Valves are designed to regulate incoming potable water pressure to protect plumbing system components and reduce water consumption. The valve is suitable for supply pressures up to 400 psi (27.6 bar), is factory set to 50 psi, and may be adjusted from 10 to 75 psi (69 to 517 kPa). Optionally available with factory preset pressure to suit customer requirements (must specify).
Available Sizes:
- 1/2″
- 3.4″
- 1″
- 1 1/4″
- 1 1/2″
- 2″
PRV used in residential, commercial, institutional, and industrial applications
All parts, including the strainer, are quickly and easily serviceable without removing the valve from the line. The Integral Bypass prevents excessive downstream pressure caused by thermal expansion. The RV03 is designed to provide longevity with smooth, quiet operation under a wide range of inlet pressure and flow variations.
- All Stainless Steel Hardware eliminates the need for a “Sealed Cage”
- Integral 300 Series Stainless Steel Strainer
- Available Sizes 1/2” to 2” with Sweat, NPTF, PEX, Press, and CPVC Adapter Kits
- Brass Body and Internal Stem
- Lead-Free construction to meet NSF-61 Requirements – The wetted surface of these valves contacted by consumable water contains less than 0.25% of lead by weight in conformance with national lead-free law.
- EPDM Seals and Reinforced Rolling Diaphragm
- Available with Engineered UV Resistant Thermoplastic. Steel, Brass Bonnet
- Temporary Spool Kit available; refer to CONTROLS® RVSK Spool Kit
- Optional Pressure Gauge Available
- Valve Bodies and Gauge Adapters have female NPT threads to allow for installation without optional adapter(s).
